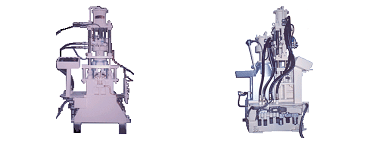

A Vertical
Type Hot Chamber Die-Casting Machine used
for small-sized and precise product casting.
With quick Cast Cycle, it is a hot chamber
die casting machine with maximized machine
efficiency.
RATED ROCKING
FORCE
TON
7.5
DIAMETER OF
DIE BARS
mm
35
DIAMETER OF
DIE BARS
mm
134 X 244
SPACE BETWEEN
DIE BARS
mm
110
DIE OPENING
STROCK
mm
200
MAXIMUM DIE
THICKNESS
mm
75
MAXIMUM DIE
THICKNESS
mm
900
INJECTION
FORCE
KG
60
FG INJECTION
CYLINDER STROCK
mm
25
DIAMETER
mm
800 X 800
FLOOR SPACE
W x L
mm
2500
OVERALL HEIGHT
mm
(W)g
STANDARD
ATTACHED
ACCESSORIES
POT MELTING AUTO SYSTEM
DIE THERMO AUTO SYSTEM
L.P.G BURNER
