Exclusive accumulator installed for stable and high speed ejection at all times.
Highly precise and intense Die Plate and Toggle equipment with enhance durability and stability to achieve high quality and highly precise products.
Easy movement of the form part by the oil clamp equipment for nozzle touch on both sides of ejection York. This improves productivity by preventing nozzle clogging and to get rid of spruce.
The Melting Pot and Goose Neck separation types enable rapid and easy exchange, which results in productivity improvement.
The Vein type pump is used to develop highly efficient systems that can be used for a long time with high energy efficiency.
Program Logic Controller enables operation status checking easy. (Operation Display selected)




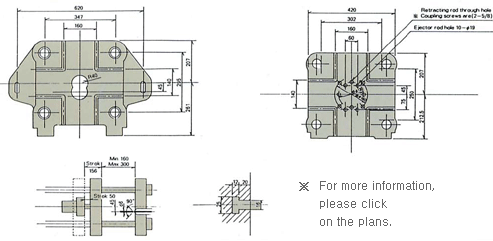

Classification
Name
Unit
scope
(DIE LOCKING DEF) (LOCKING FORCE) TON 35
(TIE BAR DIAMETER) M/M 45
(DIE STROKE) M/M 155
(TIEBARS BETWEEN SPACE) (W*H) M/M 302~250
(DIE HEIGHT) MIN*MAX M/M 160~300
(INJECTION FORCE) TON 3.3
(INJECTION DEP)
(PLINGER STROCK)(S)
M/M
 100
(PLUNGER DIAMETER(S.T.D) ¥ÕM/M 45
(THEORY SHOT WEIGHT) (WO)g 1065
WO=¥ð/4*D2*S*6.7 (AT MOLTEN METAL)
(EFFECTIVE SHOTWEIGHT) W=WO*(0.3~0.5) (W)g 320~500
(MEL TING POT CAPACITY) Kg 150
(NOZZLE POSITION) M/M -45
(INJECTION PRESURE) (MAX) Kg/C
M2 		210
(INJECTION AREA) (MAX) CM2 167
Classification
Name
Unit
scope
(DIE LOCKING DEF) (LOCKING FORCE) TON 35
(TIE BAR DIAMETER) M/M 45
(DIE STROKE) M/M 155
(TIEBARS BETWEEN SPACE) (W*H)
M/M		 302~250
(DIE HEIGHT)
MIN*MAX 		M/M 160~300
(INJECTION FORCE) TON 3.3
(INJECTION DEP)
(PLINGER STROCK)(S)
M/M
 100
(PLUNGER DIAMETER(S.T.D) ¥ÕM/M 45
(THEORY SHOT WEIGHT) (WO)g 1065
WO=¥ð/4*D2*S*6.7
(AT MOLTEN METAL)
(EFFECTIVE SHOTWEIGHT)
W=WO*(0.3~0.5) 		(W)g 320~500
(MEL TING POT CAPACITY) Kg 150
(NOZZLE POSITION) M/M -45
(INJECTION PRESURE) (MAX)
Kg/C
M2 		210
(INJECTION AREA) (MAX)
CM2 		167
